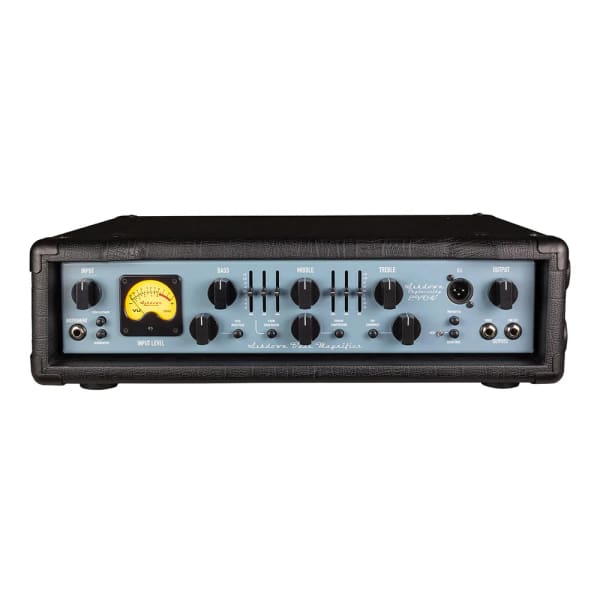

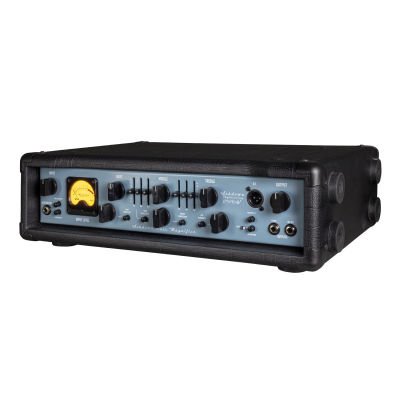

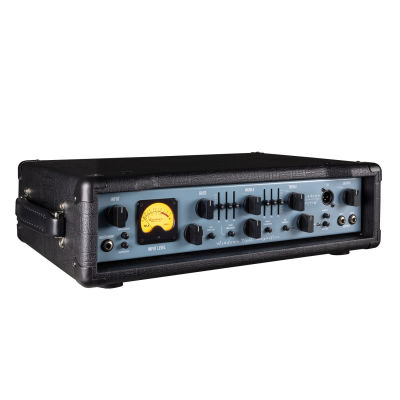

ABM-600-EVO-IV

Unleash your bass's true potential with the Ashdown ABM EVO IV. For over two decades, the ABM range has been the go-to choice for bassists seeking unrivalled tone, versatility, power, and reliability. Now in its fifth iteration, the ABM EVO IV pushes the boundaries further.

The 600W head features the Variable Valve Drive Plus, offering an array of clean to overdriven tones at your fingertips. The new 9-band EQ, with precision controls, ensures you find your perfect sound effortlessly. And let's not forget the Input VU meter, which streamlines the setup process.

ABM EVO IV retains beloved features like the One Knob Dynamic Compressor and the Sub-Harmonic Generator, enriching your bass notes with depth and character. Professional connectivity options, including a tuner output, transparent FX loop, and Line Input, make this head stage-ready and studio-friendly.

With flexible foot-switching capabilities, you can control Valve Drive, Compression, EQ, and Sub-Harmonic Generation on the fly, giving you countless sound combinations without extra pedals. Elevate your bass playing with the Ashdown ABM EVO IV.



SPECIFICATIONS

Power Output: 600 Watts

Power Requirement: 115-230 Volts

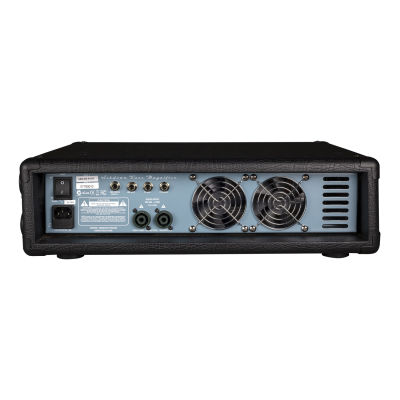

Speaker Outputs: 2 × Jack/Speakon outputs

High Instrument Input: Impedance 3.9M Ohms, input range 150mV

Low Instrument Input: Impedance 22k Ohms, input level 0dBu nominal

Line Input: Impedance 22k Ohms, input level 0dBu nominal

DI Output: 600 Ohm balanced, Level 0dBu nominal

Tuner Output: Impedance 22k Ohms, Level 0dBu nominal

Effects Send: Impedance 22k Ohm, Level 0dBu nominal

Effects Return: Impedance 22k Ohms, input level 0dBu nominal

Frequency Response: -3dB @ 17Hz to 30kHz
